How to control floor storage stacking?

Question

question

SudheerReddy asked Feb 11, '20 Jason Lightfoot commented Nov 12, '23

I am using Floor Storage as Fixed Resource. By default stacking of items is 3, I would like to change to other than 3. Is there any option to change?

Attaching the model for reference.

Software Version:

FlexSim 20.0.0

floor storage


floorstorage.fsm (200.2 KiB)

5 |100000

Attachments: Up to 12 attachments (including images) can be used with a maximum of 23.8 MiB each and 47.7 MiB total.

Answer 1 · 2020-02-11T12:31:46Z

Joerg Vogel answered Feb 11, '20 Jason Lightfoot commented Nov 12, '23

You set a different size in z direction!


· 5

5 |100000

Attachments: Up to 12 attachments (including images) can be used with a maximum of 23.8 MiB each and 47.7 MiB total.

SudheerReddy commented · Feb 11, 2020 at 01:06 PM

Thanks for your answer it helped me.

Is this the only way to do it? or Is there other ways of doing this ?

0 ·

Joerg Vogel SudheerReddy commented · Feb 11, 2020 at 01:57 PM

It is the result of the default Slot Assignment Strategy "First Slot with Space".

You can assign any slot, you have found:

storageItem.assignedSlot =
	Storage.system.findSlot("WHERE slot.slotItems.length < 8 ");

1 ·

floor-storage-find-slot-lesser-than-8.fsm (34.1 KiB)

swa12 Joerg Vogel commented · Nov 12, 2023 at 03:59 AM

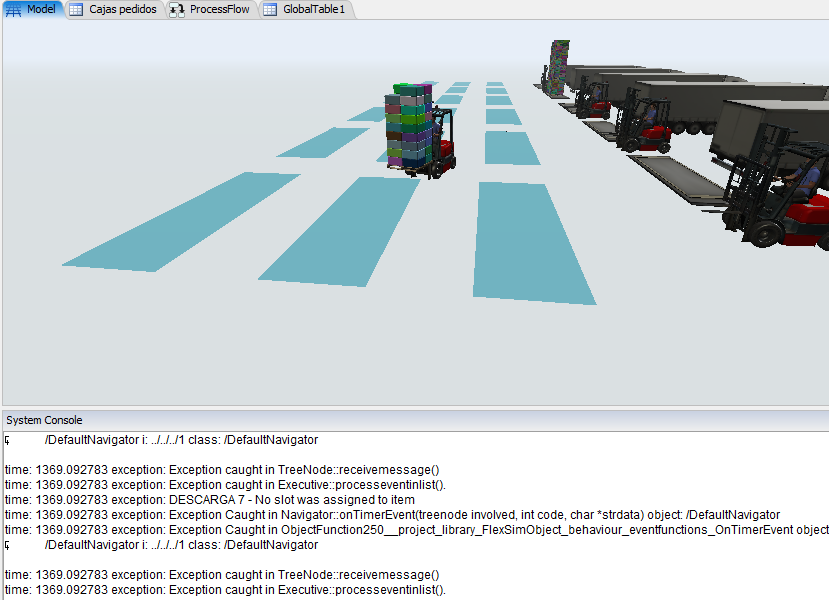

@Joerg Vogel Greetings, I tried to use this code that you shared and it gave me an error.

0 ·
