how to make two component stack together，to simulation the assemble process

Question

question

watson-mo-1 asked Apr 14, '25 CSN commented Apr 14, '25

Software Version:

FlexSim 23.0.15

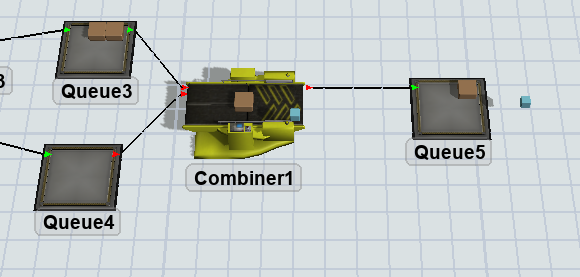

two component stack together

5 |100000

Attachments: Up to 12 attachments (including images) can be used with a maximum of 23.8 MiB each and 47.7 MiB total.

Answer 1 · 2025-04-14T03:06:18Z

CSN answered Apr 14, '25 CSN commented Apr 14, '25

You can use the pack mode in the combiner

· 2

5 |100000

Attachments: Up to 12 attachments (including images) can be used with a maximum of 23.8 MiB each and 47.7 MiB total.

watson-mo-1 commented · Apr 14 at 03:38 AM

thank you for reply , sure it can tie two component together, but how to make it look like stack component 1 ontop component 2 closely?

0 ·


CSN watson-mo-1 commented · Apr 14 at 07:06 AM

Add a trigger and set location

0 ·
